When you walk through a city’s busy core and look up, you see endless glass and metal shimmering in the sunlight. Unless you work in construction, you might not realize those sleek surfaces are curtain walls. They surround us every day — elegant, modern, and engineered to protect buildings from the elements. But what exactly is a curtain wall in construction, what purpose does it serve, and why has it become so essential to modern architecture?

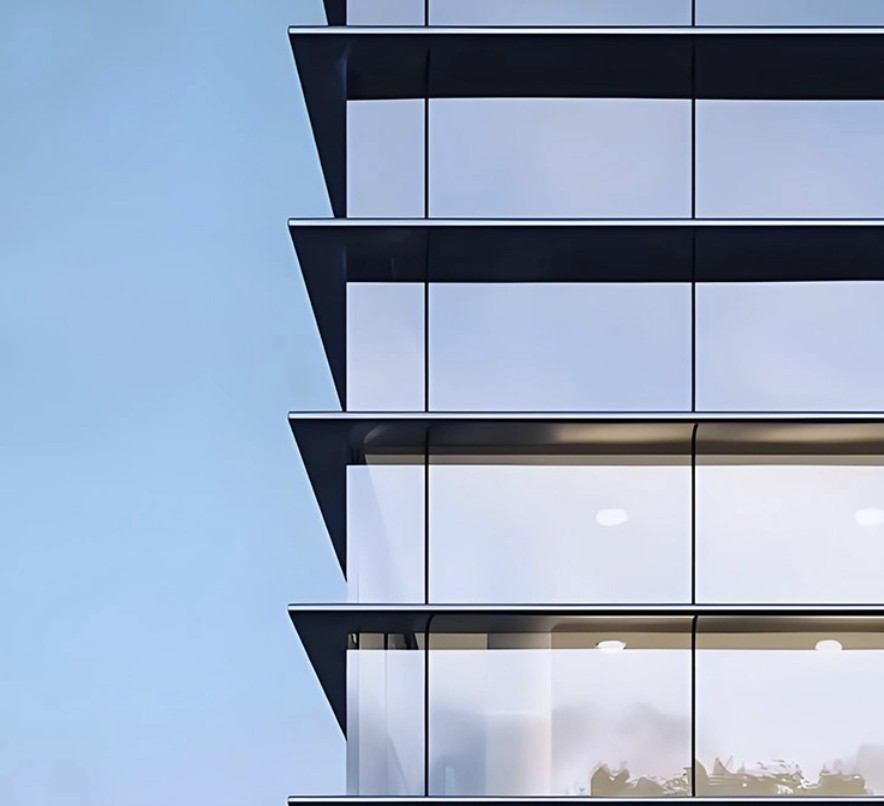

A curtain wall is a non-structural external wall system. It’s designed to shield buildings from wind, rain, and temperature extremes. Lightweight yet durable, curtain walls often combine aluminum frames and glass panels. This mix gives architects the freedom to design tall, bright, and energy-efficient buildings that feel open and modern.
Curtain walls first appeared when steel and reinforced concrete replaced heavy masonry. Architects began using thin outer layers of glass and metal to create lighter façades. By the mid-20th century, advances in aluminum extrusion and glazing made curtain walls both affordable and practical. Today, you’ll see them everywhere — from shimmering office towers and airport terminals to sleek university façades. They define the skyline of nearly every modern city, turning buildings into symbols of transparency and innovation.
To understand curtain walls, it helps to separate structural and non-structural elements. A structural wall supports the weight of floors and roofs above it. A curtain wall, on the other hand, hangs from the frame like a thin “curtain,” enclosing space but carrying no major load. It acts as a barrier against moisture and air infiltration. At the same time, it allows natural light to flow deep inside the building. Its strength lies in its connections — the anchors that tie it to the main frame while letting it flex slightly with movement.
Below is a quick look at the main parts that make up a curtain wall:
| Component | Description |
|---|---|
| Frame | Usually aluminum or sometimes steel, it holds the wall’s structure. The frame supports vertical mullions and horizontal transoms. |
| Infill Panels | Can be glass, metal sheets, stone veneer, or composite boards. Each offers different looks and insulation performance. |
| Gaskets & Sealants | These flexible materials seal joints, blocking air and water leaks. They maintain the façade’s airtight and watertight performance. |
| Anchoring Mechanism | Connects the wall to building slabs or columns. It transfers wind loads and allows for thermal expansion or building sway. |
Together, these components form a continuous protective skin. It’s light enough to hang from the structure, yet strong enough to face storms, temperature swings, and time itself.
A curtain wall system does more than just make a building look modern. It serves as the building’s first line of defense and plays a huge role in energy performance and visual design.
Curtain walls act like a protective shield against the outside world. They keep wind, rain, and moisture from leaking into interior spaces. Using multi-layered gaskets, drainage channels, and sealants, these façades create tight, weather-resistant envelopes. When water hits the surface, it’s guided through hidden drainage paths and released outside, not inside. Even in extreme weather—storms, snow, or humidity—the system helps maintain comfort and durability indoors. This protection also extends the lifespan of insulation, wall materials, and interior finishes.
One major reason architects love curtain walls is their energy performance. Modern systems cut energy loss through smart materials and design. By reducing solar heat gain and improving insulation, curtain walls help stabilize indoor temperatures. Many use double-glazed or low-E glass to reflect heat in summer and retain warmth in winter. Studies show buildings fitted with high-performance curtain walls can reduce heating demand by up to 40%. That means lower energy bills and smaller carbon footprints. They also allow more natural daylight, reducing reliance on artificial lighting and improving occupant comfort.
Curtain walls are flexible by design. They accommodate thermal expansion, seismic movement, and building sway without cracking or detaching. The joints and anchors are engineered to absorb small shifts between the façade and the building frame. This adaptability keeps the structure safe and stable over time. Many systems are available in fire-rated and acoustic versions too. These improve fire safety and reduce outside noise—important in high-rise offices, hospitals, or airports.
Beyond function, curtain walls define a building’s personality. Their modern, transparent façades make spaces feel open, bright, and inviting. Designers can customize everything—shape, glass tint, panel color, or coating—to match the brand’s identity. For corporate buildings, this visual statement often becomes part of the company’s public image. A glass tower glowing at sunset isn’t just architecture—it’s branding in motion.
Not all curtain walls work the same way. They might look similar from the outside, but inside, the engineering can be completely different. Depending on building height, climate, and budget, architects choose one of three main types.
This is the simplest and oldest form of curtain wall. It creates a continuous barrier against air and water by sealing all joints at the surface. When installed correctly, it keeps rain and wind out effectively. Because it relies entirely on perfect sealing, even small cracks or sealant aging can lead to leaks.
Advantages:
Straightforward design and installation.
Cost-effective option for low-rise commercial or residential buildings.
Limitations:
The system depends heavily on the condition of sealants.
Seal failure over time may cause moisture intrusion and reduced insulation performance.
Unlike face-sealed systems, this type accepts that a bit of water may get inside. But it’s designed to control and drain that moisture safely away. It includes internal channels, drainage cavities, and weep holes to guide water back outdoors. By focusing on water management instead of total exclusion, it stays functional even after minor seal damage.
Common Uses:
Ideal for mid-rise office buildings and retail complexes.
Works well in areas with moderate rainfall or fluctuating humidity.
Key Benefits:
Lower maintenance costs over time.
Reduces pressure on sealants, improving long-term reliability.
This is the most advanced—and the most weather-resistant—type. It uses pressure chambers inside the wall to balance air pressure between the exterior and interior. When wind pushes against the façade, the internal cavity equalizes pressure, so water has no force driving it inward. That’s why it’s widely used in high-rise towers or extreme climate zones where storms and wind loads are intense.
Features:
Built-in vents for pressure balance and moisture drainage.
Provides maximum air- and water-tight performance.
Requires precise engineering and professional installation.
Best For:
| Building Type | Climate | Maintenance Level |
|---|---|---|
| High-rise towers | Coastal / windy | Low |
| Airports / landmarks | Extreme rain or temperature | Moderate |
| Modern glass façades | Variable climates | Low |
A well-designed curtain wall acts like a tough skin for the building. It blocks wind, rain, and airborne particles, protecting interior finishes and insulation. Multi-layered seals, gaskets, and drainage paths ensure air-tight and water-tight performance. Even in high-rise structures, the system resists pressure changes caused by storms and temperature swings. The result? A comfortable indoor climate and longer lifespan for the building’s materials.
Curtain walls help control how heat and light enter a building. Using low-E coatings, double glazing, or thermal breaks, they cut down heat loss in winter and glare in summer. This balance improves HVAC efficiency, lowering heating and cooling costs. At the same time, the large glass surfaces allow more natural daylight, reducing artificial lighting needs.
Below is a quick comparison of performance impact:
| Feature | Effect on Energy Use | Added Benefit |
|---|---|---|
| Low-E Glass | Reflects solar heat | Keeps interiors cooler |
| Double Glazing | Improves insulation | Reduces condensation |
| Natural Light | Decreases electric lighting | Enhances mood & productivity |
Architects love curtain walls because they offer limitless creative freedom. The system can adapt to curves, angles, or full-glass façades. Panels come in countless colors, tints, and finishes — from clear reflective glass to textured metal. It lets each building stand out while maintaining performance standards. Custom profiles and modular construction also make it easy to integrate branding or signature designs.
Once installed, curtain walls require minimal upkeep. Their non-corrosive aluminum frames and durable glazing stand up to decades of use. Since they prevent water infiltration and material decay, owners spend less on repairs and repainting. The smooth glass surface is easy to clean and resists dirt buildup. Over time, these savings offset the system’s higher initial cost, making it a smart long-term investment.
Beyond practicality, curtain walls boost a building’s market value and reputation. They give structures a modern, professional image that appeals to tenants and investors alike. Corporate towers, airports, and universities use them to project transparency, innovation, and confidence. When people see a glass façade reflecting the sky, they see more than a building — they see identity and ambition.
Curtain wall systems bring many advantages, but they also require thoughtful planning. Their installation process is precise and involves high-quality materials, which can make the initial cost higher than standard wall systems. However, this investment often pays off through durability and long-term energy savings.
Like any exterior envelope, curtain walls need routine maintenance to keep seals and joints performing well. Regular inspections help prevent small issues, like seal wear, from turning into larger repairs. Because buildings move slightly under wind and temperature changes, professional design ensures the wall can handle structural movement and wind loads safely. Attention to fire-stopping and condensation control is equally important, helping maintain both safety and comfort inside the building. When these factors are managed correctly, curtain walls deliver lasting value and reliable performance.
A: No. Curtain walls are non-structural and support only their own weight. They transfer wind and gravity loads to the main building frame through anchoring systems.
A: Curtain walls are installed outside the building structure and span multiple floors, while window walls are fitted between slabs and usually serve one floor at a time.
A: They offer a seamless façade, better energy efficiency, and greater flexibility in design and materials, creating a modern, uniform look.
A: A well-designed curtain wall can last 30–50 years or more with regular maintenance of sealants, gaskets, and glazing components.
A: The initial cost is higher due to complex design and installation, but they deliver long-term savings through energy efficiency and reduced maintenance.
A: Most systems measure between 6–10 inches (150–250 mm) thick, depending on insulation layers, glass type, and frame configuration.
A curtain wall is a modern, non-structural façade that protects buildings while defining their architectural character. It seamlessly blends aesthetics, performance, and sustainability, keeping interiors bright, comfortable, and energy efficient. From commercial towers to public landmarks, its adaptable design delivers long-term value and visual appeal.
