XY70XL
SUNGYE

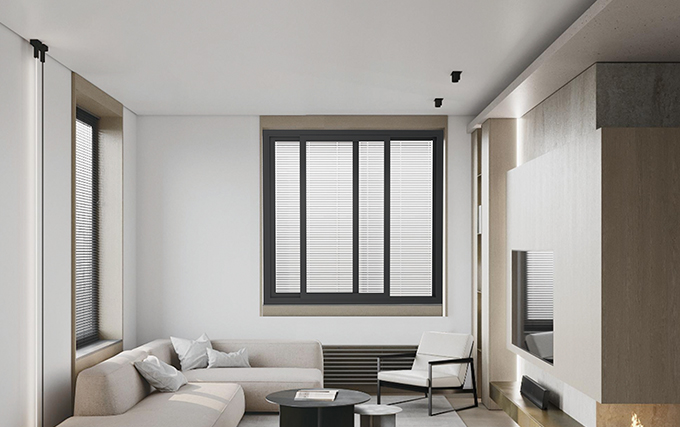

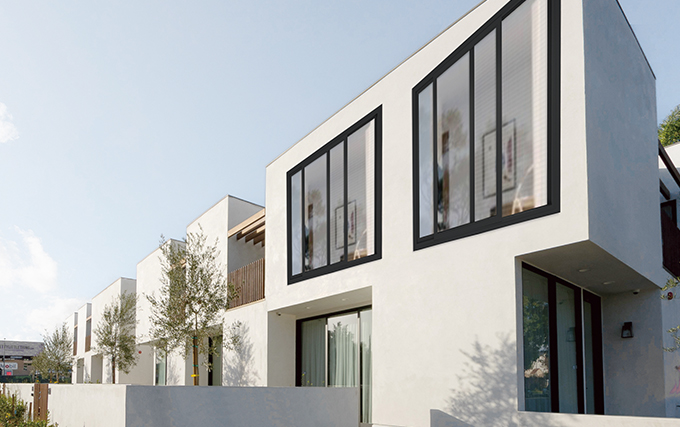

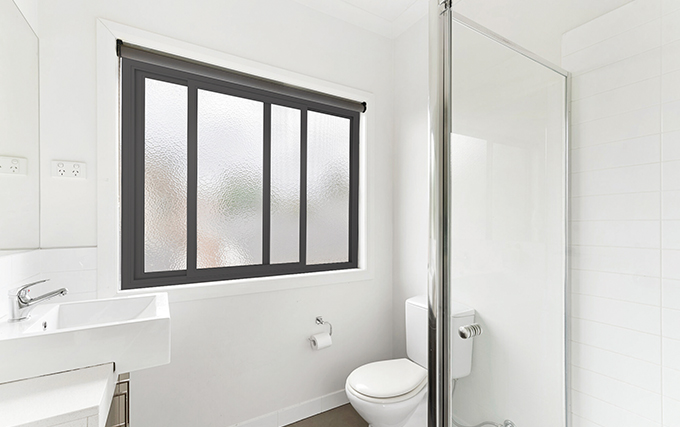

Inspired by modernist architecture, steel-framed windows feature black matte finishes and modular grids. Hot-dip galvanized coating prevents rust. Thermal inserts improve insulation without compromising industrial aesthetics. Compatible with double-glazed acoustic glass for urban installations.
Ultra-slim reinforced aluminum profile
High-grade XY70XL alloy with 25% enhanced load capacity, ideal for large spans and high-rise installations.
Zero-friction sliding system
Dual-axis stainless steel rollers with self-lubricating tech ensure smooth, silent operation for 100,000+ cycles.
Triple-layer thermal insulation
Multi-chamber design + thermal break + Low-E glass reduce heat loss by 40%, achieving U-value ≤1.5 W/m²·K.
Military-grade security locks
Integrated 6-point locking system withstands 2,500N force, certified to EN 1627 RC2 anti-burglary standards.
Weatherproof drainage technology
Hidden channels and capillary barriers prevent water ingress even under 1,500Pa wind-driven rain pressure.
 |  |
 |  |
Summary: High-strength XY70XL alloy with 25% increased load capacity for structural stability.
Details: Sungye’s XY70XL aluminum profile combines aerospace-grade alloy (Si-Mg-Ti reinforced) with a slim 70mm frame depth, achieving a 30% higher load-bearing capacity than standard 6063-T5 aluminum. The profile undergoes precision extrusion and T6 heat treatment, ensuring resistance to deformation under wind loads up to 3,000 Pa. Ideal for high-rise buildings and coastal regions, it maintains dimensional stability across temperatures from -40°C to 100°C. Anodized and powder-coated surfaces provide Class I corrosion resistance per ASTM B117 salt-spray standards.
Summary: Dual-axis stainless steel rollers enable silent, frictionless operation for 100,000+ cycles.
Details: The sliding system integrates self-lubricating dual-axis rollers with ceramic-coated bearings, reducing operational resistance by 60% compared to traditional nylon rollers. The V4-grade stainless steel track features a self-cleaning groove and anti-jump design, eliminating dust accumulation and misalignment. Tested for 100,000 open-close cycles at 50 kg load, it maintains noise levels below 20 dB. A patented tension-adjustment screw allows effortless customization of sliding tightness for long-term smoothness.
Summary: Multi-chamber design, thermal breaks, and Low-E glass cut heat loss by 40%.
Details: The XY70XL window combines a 6-chamber frame (U-value: 1.3 W/m²·K) with PA66 GF25 thermal break strips and 24mm argon-filled Low-E glass. This configuration reduces energy transfer by 40%, maintaining indoor temperatures within ±1°C of set points. Optional triple glazing (U-value: 0.8 W/m²·K) blocks 95% of UV rays and reduces condensation risk. Certified by PHI (Passive House Institute), it meets ENERGY STAR® Most Efficient 2023 criteria, lowering HVAC costs by 25-35% annually.
Summary: 6-point locking mechanism withstands 2,500N force, exceeding EN 1627 RC2 standards.
Details: Sungye’s anti-burglary system features 14mm chrome-plated steel shoot bolts, dual hook locks, and tamper-resistant hinge shields. The interlocking sash design distributes force evenly, resisting pry attacks exceeding 2,500N. Optional smart locks integrate with IoT home systems, enabling remote control and intrusion alerts. Third-party tested by TÜV SÜD, it achieves a 45-minute forced entry resistance rating, certified for residential and commercial use in high-risk areas.
Summary: Quadruple EPDM seals and 4-tier drainage endure 1,500Pa wind-driven rain.
Details: Engineered for extreme climates, the window uses Shore 70±5 EPDM gaskets at frame-sash junctions, glass edges, and drainage channels. A patented "DryTech" system includes hidden weep holes, anti-capillary grooves, and a 15° sloped track to discharge 3L/min water flow. Tested under 1,800Pa dynamic pressure (simulating 220 km/h winds), it achieves Grade A watertightness per GB/T 7106-2008. Dustproof brushes and nano-coated tracks prevent particulate ingress in sandy environments.
Summary: 120+ RAL colors, woodgrain finishes, and modular grids for design versatility.
Details: Sungye offers 1.8mm-thick polyester powder coatings in matte, metallic, or textured finishes, resistant to fading for 25+ years. Customizable grid patterns (Georgian, colonial, or minimalist) suit modern or traditional architecture. The 45mm narrow sightline maximizes glass area (up to 90% visible light transmission), while optional integrated blinds or insect screens enhance functionality. All hardware is available in brushed nickel, black, or gold finishes.
Summary: 90% recycled aluminum and solar-powered production reduce carbon footprint by 65%.
Details: XY70XL profiles contain 90% post-consumer recycled aluminum, processed in Sungye’s LEED Platinum-certified factories using 100% renewable energy. Water-based coating systems cut VOC emissions by 85%, while biodegradable packaging aligns with Cradle-to-Cradle principles. The fully recyclable design supports circular economy goals, validated by ISO 14001 and EPD certifications. Each ton of XY70XL production saves 14,000 kWh energy versus virgin aluminum.
This structure emphasizes Sungye’s technical leadership, sustainability commitments, and adaptability to global architectural demands, positioning the XY70XL as a premium solution for performance-driven projects.
