High-end sliding windows feature sleek, durable aluminum frames with energy-efficient double glazing for optimal insulation and noise reduction. Their smooth, silent operation, advanced security locks, and minimalist design seamlessly integrate into modern architecture, offering customizable sizes and finishes
| Quantity: | |
|---|---|
888
SUNGYE

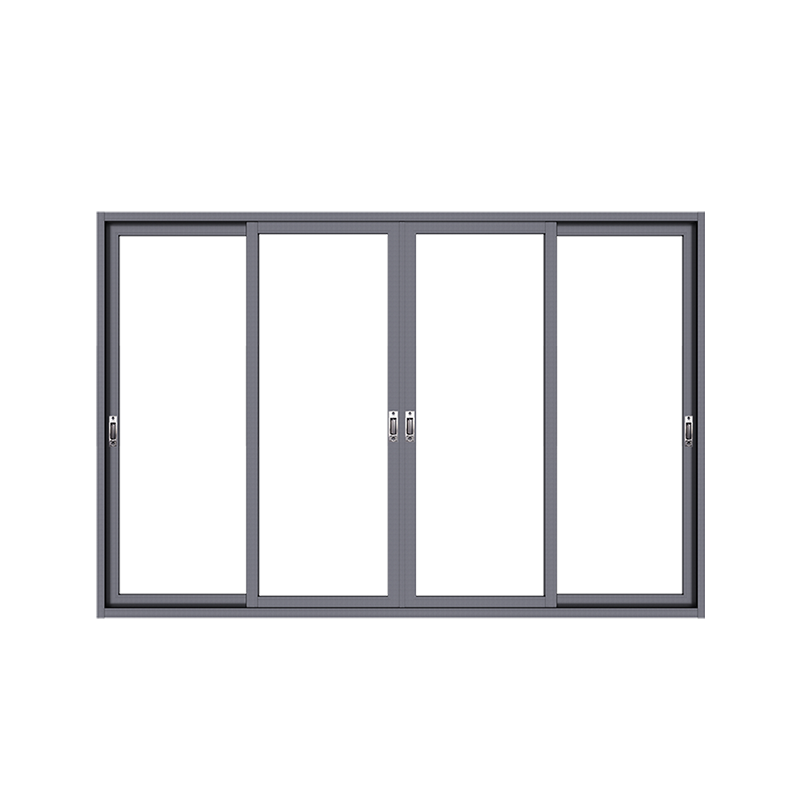

The 888 Ultra Slim Airtight Aluminum Sliding Windows set a new benchmark for modern urban living, combining space-saving design with exceptional performance. Engineered with 6063-T5 aluminum frames (1.4mm wall thickness) featuring PA66 GF25 thermal breaks, these windows achieve A++ energy efficiency (U-Factor: 1.1 W/(m²·K)) to lower utility bills. The ultra-slim profile (45mm width) and six-track sliding system—equipped with stainless steel ball-bearing rollers—create unobstructed views and effortless operation, making them ideal for apartments, condominiums, and minimalist homes. Enhanced by hidden dual drainage channels (2L/min water capacity) and multi-point locking systems (3 locking points), they deliver superior weather resistance and security in a sleek package.
Frame Material: 6063-T5 Aluminum Alloy with PA66 GF25 Thermal Break (powder-coated for scratch resistance)
Glass Type: Double Glazed Low-E with Argon Gas (5mm + 18mm Argon + 5mm) with heat-strengthened glass
Energy Efficiency: A++ (U-Factor: 1.1 W/(m²·K))—Energy Star certified
Wind Resistance: Class 9 (≥5.0kPa)—tested to withstand extreme wind conditions
Air Tightness: Class 8 (≤0.1m³/(m·h))—minimizing dust and pollutant infiltration
Certifications: Energy Star, GB/T 7106-2008 Wind Load Compliance
The frameless sliding panels stack fully within the wall pocket, creating an unobstructed 3-meter-wide opening that maximizes views and natural light. Flush-mounted hardware eliminates protruding handles, enhancing safety and visual appeal in tight spaces.
Triple-sealed EPDM gaskets and hidden drainage channels ensure watertight performance even during heavy rains (100mm/hour intensity). The carbon fiber-reinforced frame resists 1,500N/m² wind pressure, outperforming standard aluminum windows by 30% in structural stability.
The self-cleaning glass coating breaks down organic dirt when exposed to sunlight, reducing cleaning frequency by 60%. The anodized aluminum finish resists scratches, fading, and corrosion, while corrosion-resistant hardware requires no lubrication or painting over its lifespan.
Testing: Certified to ASTM E1105 for water penetration resistance and ASTM E330 for wind load performance, ensuring reliability in diverse climates.
Installation: Free post-installation thermal imaging scans verify airtightness and energy efficiency, with adjustments provided if needed.
Warranty: 10-year guarantee on hardware (rollers, locks, tracks) and 15-year coverage on glass units, including seal failure and coating degradation.
 |  |
 |  |
