TG60XL
SUNGYE
 |  |
 |  |
 |
|

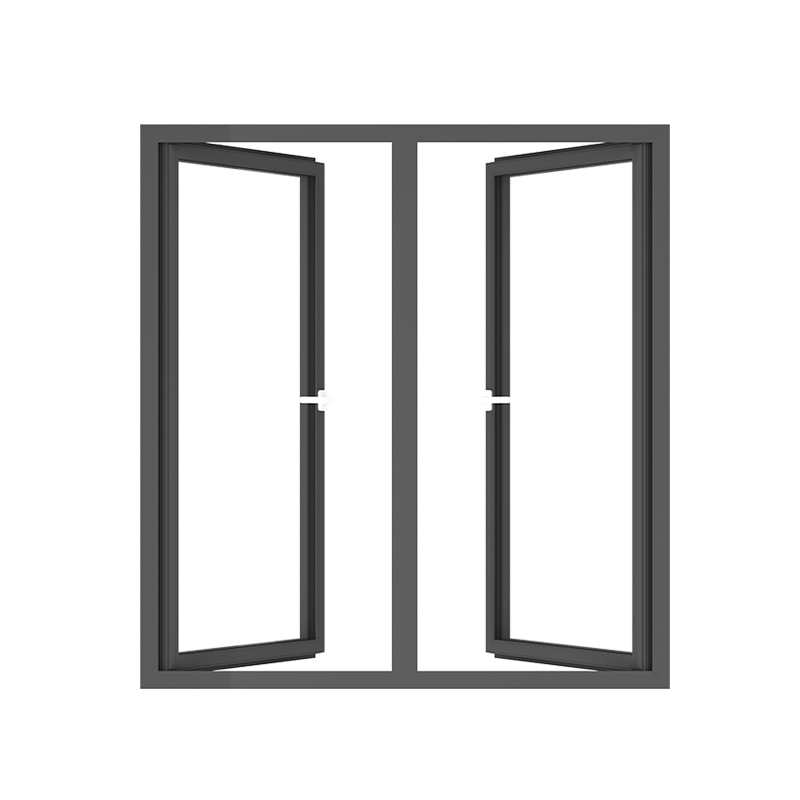

The TG60XL Premium Energy Efficient Sleek Aluminum Doors and Windows set a new standard for luxury and sustainability. Engineered for high-end residences, this system features 6063-T5 aluminum frames (1.8mm wall thickness) and triple-glazed Low-E glass (5mm + 12mm Argon + 5mm + 12mm Argon + 5mm), achieving A+++ energy efficiency (U-Factor: 0.9 W/(m²·K)) . The frameless design and stackable panels create seamless indoor-outdoor living, while the smart lock integration (Bluetooth/keypad) enhances security. Ideal for villas, hotels, and eco-friendly buildings.
Frame Material: 6063-T5 Aluminum Alloy with PA66 GF25 Thermal Break
Glass Type: Triple Glazed Low-E with Argon Gas (5mm + 12mm Argon + 5mm + 12mm Argon + 5mm)
Energy Efficiency: A+++ (U-Factor: 0.9 W/(m²·K))
Wind Resistance: Class 9 (≥5.0kPa)
Security: Smart Lock Integration (Bluetooth/keypad)
Certifications: Energy Star, PHI Passive House Certified
Ultra-Low Energy Consumption
The triple-glazed Low-E glass blocks 99% of UV rays and reflects 90% of solar heat, reducing heating/cooling costs by 40%. The PA66 GF25 thermal break minimizes heat loss by 70%, meeting passive house standards.
Luxury Aesthetics

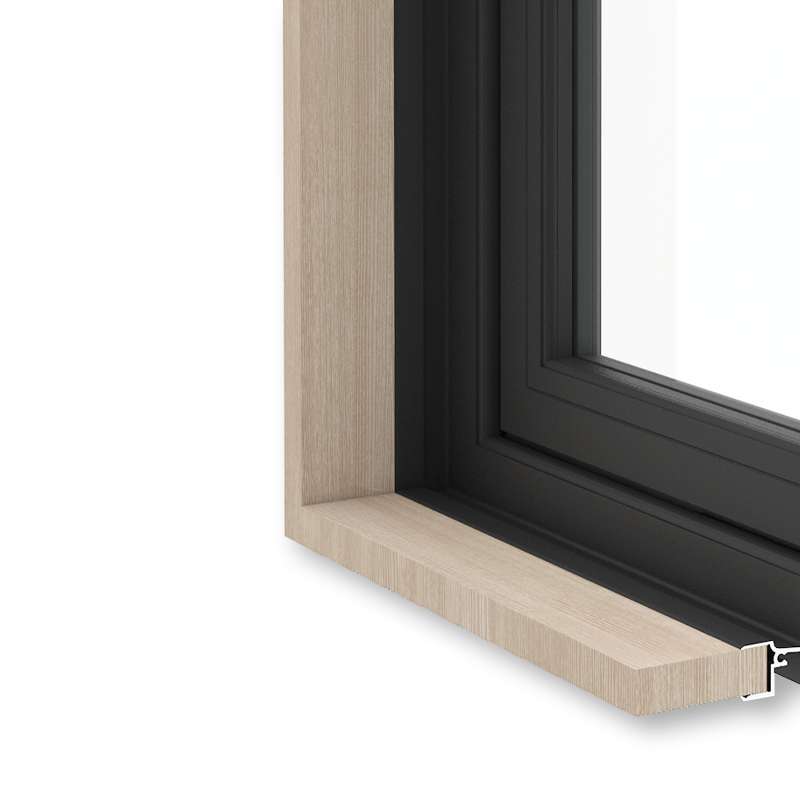

The frameless design and slim-profile frame (60mm width) create a modern, minimalist look. The hidden drainage system and flush-mounted hardware enhance visual appeal.
Smart Security
The impact-resistant laminated glass (meeting EN 356 Class P8B) and multi-point locking system (5 locking points) deter forced entry. Optional CCTV integration provides real-time monitoring.
Sustainability: 90% recycled aluminum used in production, with a 20-year warranty on glass units.
Integration: Compatible with smart home systems (Alexa, Google Home) for voice control.
Testing: Certified to ASTM E1886 (cyclic wind load) and ASTM E413 (sound transmission).
| |
| |
|
|
The TG60XL Premium Energy Efficient Sleek Aluminum Doors and Windows set a new standard for luxury and sustainability. Engineered for high-end residences, this system features 6063-T5 aluminum frames (1.8mm wall thickness) and triple-glazed Low-E glass (5mm + 12mm Argon + 5mm + 12mm Argon + 5mm), achieving A+++ energy efficiency (U-Factor: 0.9 W/(m²·K)) . The frameless design and stackable panels create seamless indoor-outdoor living, while the smart lock integration (Bluetooth/keypad) enhances security. Ideal for villas, hotels, and eco-friendly buildings.
Frame Material: 6063-T5 Aluminum Alloy with PA66 GF25 Thermal Break
Glass Type: Triple Glazed Low-E with Argon Gas (5mm + 12mm Argon + 5mm + 12mm Argon + 5mm)
Energy Efficiency: A+++ (U-Factor: 0.9 W/(m²·K))
Wind Resistance: Class 9 (≥5.0kPa)
Security: Smart Lock Integration (Bluetooth/keypad)
Certifications: Energy Star, PHI Passive House Certified
Ultra-Low Energy Consumption
The triple-glazed Low-E glass blocks 99% of UV rays and reflects 90% of solar heat, reducing heating/cooling costs by 40%. The PA66 GF25 thermal break minimizes heat loss by 70%, meeting passive house standards.
Luxury Aesthetics
The frameless design and slim-profile frame (60mm width) create a modern, minimalist look. The hidden drainage system and flush-mounted hardware enhance visual appeal.
Smart Security
The impact-resistant laminated glass (meeting EN 356 Class P8B) and multi-point locking system (5 locking points) deter forced entry. Optional CCTV integration provides real-time monitoring.
Sustainability: 90% recycled aluminum used in production, with a 20-year warranty on glass units.
Integration: Compatible with smart home systems (Alexa, Google Home) for voice control.
Testing: Certified to ASTM E1886 (cyclic wind load) and ASTM E413 (sound transmission).
